1" BSP QuickStop Advance Float Valve


Available Options (Prices ex. VAT)

From £40.99 £34.16


Lead Time
2-3 working days
Delivery Cost
Free UK Mainland Delivery
Exclusions apply - Click here for more details

UK Delivery Charges - Important Information

Our standard UK Mainland delivery charges have been automatically added to your shopping basket. As our products are supplied from a number of different locations, delivery times can vary, please read the product descriptions for more details. If we are unable to deliver your order within the timeframe specified in the product description, we will contact you, as soon as possible to advise of a revised delivery date.

Need your order urgently? We may be able to assist and offer an express delivery service, call our sales team on 01777 858009

Buying in bulk? Call our sales team on 01777 858009

Delivery to any of the following areas may incur additional delivery charges

Channel Islands, Isle of Man, Isle Of Wight, Anglesey, Isles of Scilly, Western Isles, Orkney Islands, Shetland Islands, Northern Ireland & Republic of Ireland, Scottish Highlands and Offshore Islands and also areas north of the Glasgow/Edinburgh line including the following postcode areas:

AB, DD, DG, EH, FK, G, HS, IV, KA, KW, KY, ML, PA20-40, PA60-78, PH1-26, PH30-44, PH49-50, TD, ZE

If your delivery location or postcode is listed above, please call our sales team on 01777 858009 for more details.

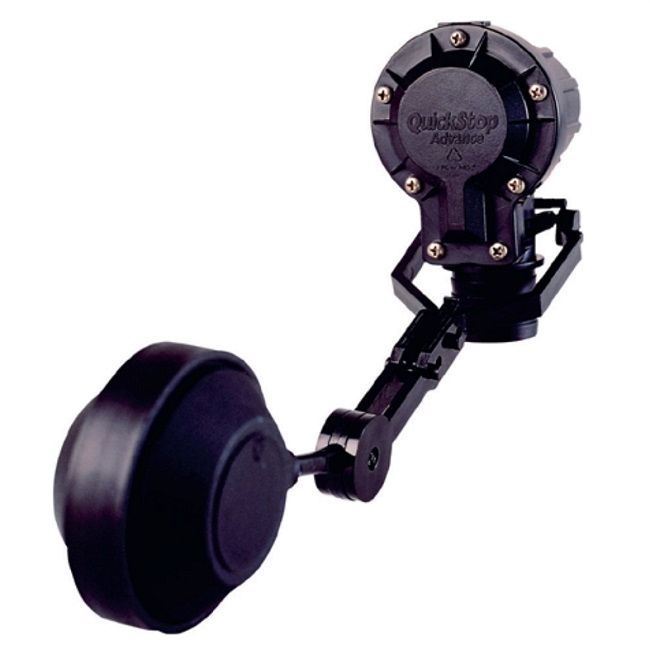

These QuickStop float valves are hydraulic water level regulators that have been designed as an alternative to conventional ballcock valves in water tanks and cisterns.

The QuickStop goes instantly from fully open to fully closed, thereby preventing repeated stop/start cycling of pumps when filling tanks. They have a very high flow rate which allows rapid filling with minimal pressure loss.

When water is drawn from the tank, the QuickStop valve has a delayed re-start level of approximately 3cm which further reduces the stop/start frequency of the pump.

The adjustable version has an arm that extends up to 60mm.


  • Operating pressure: 0.2 – 6 bar
  • Operating temperature: 0 - +50°C
  • Storage temperature: -20°C - +80°C
  • Over pressure: 15 bar
  • Burst pressure: >20 bar
  • Float movement range: 0 - 180°
  • Float arm adjustment: up to 60mm (6 settings)
  • CE Mark


  • Body: Polycarbonate
  • Float: Polycarbonate
  • Levers: ABS
  • Membrane: SEBS
  • Fasteners: Stainless Steel
  • Colour: Black

Included in the Kit

  • QuickStop Float Valve
  • Washers and Nut
  • Installation Instructions
