100 Litre Conical Water Tank
Tank Specifications
| Diameter - mm | 568 |
| Height - mm | 675 |
| Approx. Weight (empty) - kg | 8 |
| Capacity - Litres | 100 |
| Capacity - Gallons | 22 |
| Suitable for Drinking Water | Yes |
| Outlet | 1" BSP Female |
| Lid Diameter - Inches | 8 |
| Height With Turret/Lid - mm | 720 |
| Construction Material | Food Grade Polyethylene |
Product Downloads
Tank Specifications
| Diameter - mm | 568 |
| Height - mm | 675 |
| Approx. Weight (empty) - kg | 8 |
| Capacity - Litres | 100 |
| Capacity - Gallons | 22 |
| Suitable for Drinking Water | Yes |
| Outlet | 1" BSP Female |
| Lid Diameter - Inches | 8 |
| Height With Turret/Lid - mm | 720 |
| Construction Material | Food Grade Polyethylene |
Our 100 Litre water tank is manufactured from a tough and durable Polyethylene which is both UV protected and weather resistant.
This product is suitable for storing liquids up to 70°c. It features 6 x M8 inserts around the middle of the tank and a 1" BSP Female outlet (on side and bottom).
Fusion Welded Sockets
If you require the tank outlet in a different position to the standard location, a fusion welded socket can be added and this allows flexible positioning of inlets and outlets on the tank. Multiple extra sockets can be added - prices of the sockets can be found in the downloadable technical data sheet titled ‘Fusion Welded Sockets - 100 Litre Conical Water Tank’.
The sockets are available in the following sizes:
- ½ inch BSP Female
- ¾ inch BSP Female
- 1 inch BSP Female
- 1 ¼ inch BSP Female
- 1 ½ inch BSP Female
- 2 inch BSP Female
- ¾ inch BSP Male
- 1 inch BSP Male
- 1 ½ inch BSP Male
All you need to do is download the technical data sheet and mark the position you require the inlet/outlet(s), email this to us at sales@kingfisherdirect.co.uk and then give us a call on 01777 858009 to place your order.
Optional Tap Kits
A choice of two optional tap kits are available to suit this tank.

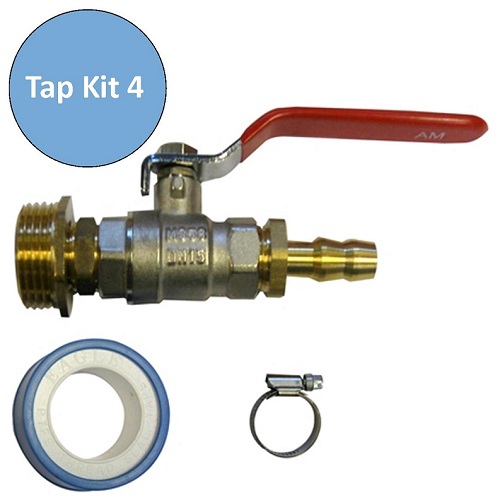

Tap Kit 4 includes;
- ½" Lever tap
- ½" Brass nipple
- 1" to ½" reducer
- 12mm brass hosetail
- 1 Roll of PTFE tape
- Hose clip

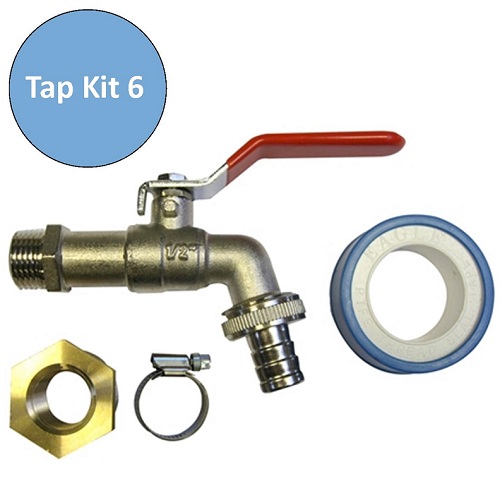

Tap Kit 6 includes;
- ½" Bib tap c/w 12mm hosetail
- 1" to ½" brass reducer
- Hose clip
- PTFE tape
If you require one of the optional tap kits, please select the kit you require from the drop down box.
Please Note: Black tanks are manufactured to order and this will add to the delivery time.
