105 Litre Flat Potable Water Tank
Tank Specifications
Length - mm | 750 |
Width - mm | 500 |
Height - mm | 300 |
Approx. Weight (empty) - kg | 9 |
Capacity - Litres | 105 |
Capacity - Gallons | 23 |
Suitable for Drinking Water | Yes |
Outlet Size | ¾” BSP Female |
Lid Diameter - Inches | 5 |
Construction Material | Food Grade Polyethylene |
Product Downloads
Tank Specifications
Length - mm | 750 |
Width - mm | 500 |
Height - mm | 300 |
Approx. Weight (empty) - kg | 9 |
Capacity - Litres | 105 |
Capacity - Gallons | 23 |
Suitable for Drinking Water | Yes |
Outlet Size | ¾” BSP Female |
Lid Diameter - Inches | 5 |
Construction Material | Food Grade Polyethylene |
Our 105 Litre Potable Water Tanks are manufactured from tough and durable polyethylene and as standard are semi-translucent which is ideal for seeing the water level inside your tank. The tanks are UV protected, weather resistant and available in black at extra cost.
The tanks are suitable for the safe storage of liquids up to 70°c.
Fusion Welded Sockets
If you require the tank outlet in a different position to the standard location, a fusion welded socket can be added and this allows flexible positioning of inlets and outlets on the tank. Multiple extra sockets can be added - prices of the sockets can be found in the downloadable technical data sheet titled ‘Fusion Welded Sockets - 105 Litre Flat Tank’.
The sockets are available in the following sizes:
- ½ inch BSP Female
- ¾ inch BSP Female
- 1 inch BSP Female
- 1 ¼ inch BSP Female
- 1 ½ inch BSP Female
- 2 inch BSP Female
- ¾ inch BSP Male
- 1 inch BSP Male
- 1 ½ inch BSP Male
All you need to do is download the technical data sheet and mark the position you require the inlet/outlet(s), email this to us at sales@kingfisherdirect.co.uk and then give us a call on 01777 858009 to place your order.
Optional Tap Kits
A choice of two optional tap kits are available to suit this tank.

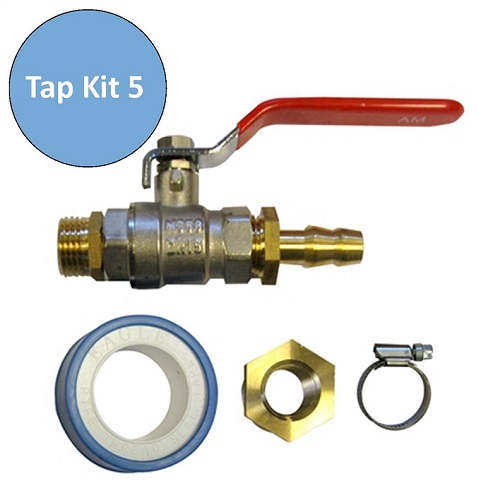

Tap Kit 5 includes;
- ½" Lever Tap
- ½" Brass nipple
- ¾" to ½" reducer
- 12mm brass straight hosetail
- 1 Roll of PTFE tape
- Hose clip

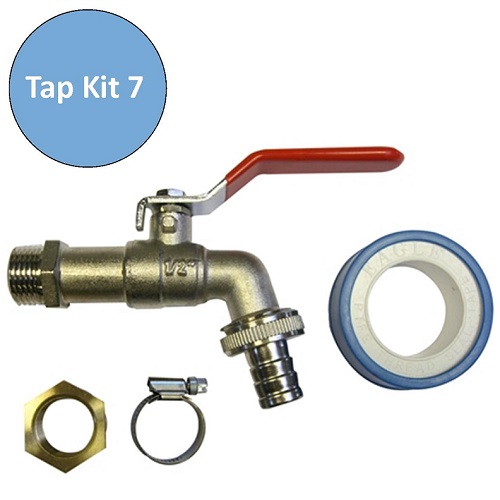

Tap Kit 7 includes;
- ½" Bib tap c/w 12mm hosetail
- ¾" to ½" brass reducer
- Hose clip
- PTFE tape
If you require one of the optional tap kits, please select the kit you require from the drop down box.
Please Note: Black tanks are manufactured to order and this will add to the delivery time.
