114 Litres Cold Water Circular Loft Tank

SKU
PTC25DWT

Available Options (Prices ex. VAT)

£196.50 £163.75

Delivery

Lead Time
2-3 working days
Delivery Cost
Free UK Mainland Delivery
Exclusions apply - Click here for more details

UK Delivery Charges - Important Information

Our standard UK Mainland delivery charges have been automatically added to your shopping basket. As our products are supplied from a number of different locations, delivery times can vary, please read the product descriptions for more details. If we are unable to deliver your order within the timeframe specified in the product description, we will contact you, as soon as possible to advise of a revised delivery date.

Need your order urgently? We may be able to assist and offer an express delivery service, call our sales team on 01777 858009

Buying in bulk? Call our sales team on 01777 858009

Delivery to any of the following areas may incur additional delivery charges

Channel Islands, Isle of Man, Isle Of Wight, Anglesey, Isles of Scilly, Western Isles, Orkney Islands, Shetland Islands, Northern Ireland & Republic of Ireland, Scottish Highlands and Offshore Islands and also areas north of the Glasgow/Edinburgh line including the following postcode areas:

AB, DD, DG, EH, FK, G, HS, IV, KA, KW, KY, ML, PA20-40, PA60-78, PH1-26, PH30-44, PH49-50, TD, ZE

If your delivery location or postcode is listed above, please call our sales team on 01777 858009 for more details.

Specification

Weight - kg
6
Diameter - mm
690
Height - mm
575
Capacity - Litres
114
Suitable for Drinking Water (Potable)
No
WRAS Approved
Yes
Product Downloads

Details

This water tank is a complete solution for loft water storage or as an additional expansion tank. The tank is supplied with an installation kit as standard; which is sealed inside the tank for delivery purposes. The only extras you need are the copper tubes/pipes.

This water tank is manufactured from polyethylene plastic, creating a strong and durable mould to guarantee a long product life. Loft water tanks are mainly used as part of a gravity fed (fully vented) central heating system.

This WRAS approved loft tank complies with British standards to hold potable water. This product can be used as a replacement tank, extra tank or to be installed in new builds.

A Byelaw 30 kit is also included, with an optional ballcock and float also available.

Please Note: A ballcock and float are required to complete the installation as detailed below in the diagram.

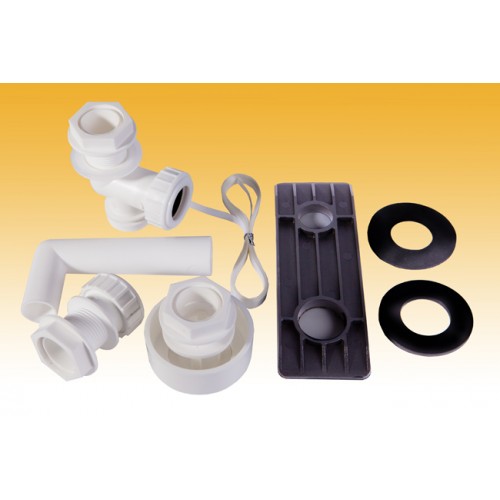

Byelaw 30 Kit

The Byelaw 30 kit includes:

  • Screened warning pipe elbow
  • Dip tube
  • Ball valve back plate (suitable for ½” or ¾” ball valve)
  • Plastic support washer
  • Rubber sealing washer
  • Insulation jacket ties
  • Screwed breather
  • Screwed vent pipe sleeve

also included;

  • Snap on lid
  • Insulation jacket
  • Installation instructions

This product comes with a 12 month manufacturer’s warranty.

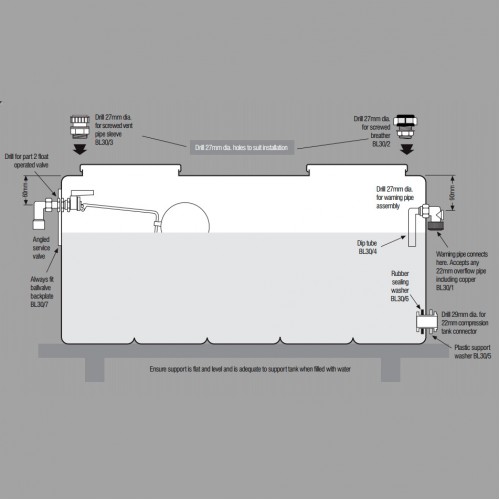

Below is a diagram of the installation required, showing where the inlet and outlets should be drilled.

Tank Installation
