155 Litres Water Tank - Flat
Tank Specifications
| Length - mm | 1100 |
| Width - mm | 620 |
| Height - mm | 290 |
| Approx. Weight (empty) - kg | 14 |
| Capacity - Litres | 155 |
| Capacity - Gallons | 34 |
| Suitable for Drinking Water | Yes |
| Outlet Size | 3/4" BSP Female |
| Lid Diameter - Inches | 8 |
| Construction Material | Food Grade Polyethylene |
Product Downloads
Tank Specifications
| Length - mm | 1100 |
| Width - mm | 620 |
| Height - mm | 290 |
| Approx. Weight (empty) - kg | 14 |
| Capacity - Litres | 155 |
| Capacity - Gallons | 34 |
| Suitable for Drinking Water | Yes |
| Outlet Size | 3/4" BSP Female |
| Lid Diameter - Inches | 8 |
| Construction Material | Food Grade Polyethylene |
Our 155 litre water tank is manufactured from tough and durable polyethylene and is suitable for the storage and transportation of a wide range of liquids including potable water. The tank is semi-translucent which is ideal for seeing the water level inside the tank and each tank is supplied with an 8” lid and ¾” BSP Female outlet as standard.
The tank is suitable for storing liquids up to 70°c.
Fusion Welded Sockets
If you require the tank outlet in a different position to the standard location, a fusion welded socket can be added and this allows flexible positioning of inlets and outlets on the tank. Multiple extra sockets can be added - prices of the sockets can be found in the downloadable technical data sheet titled ‘Fusion Welded Sockets - 155 Litre Flat Tank’.
The sockets are available in the following sizes:
- ½ inch BSP Female
- ¾ inch BSP Female
- 1 inch BSP Female
- 1 ¼ inch BSP Female
- 1 ½ inch BSP Female
- 2 inch BSP Female
- ¾ inch BSP Male
- 1 inch BSP Male
- 1 ½ inch BSP Male
All you need to do is download the technical data sheet and mark the position you require the inlet/outlet(s), email this to us at sales@kingfisherdirect.co.uk and then give us a call on 01777 858009 to place your order.
Optional Tap Kits
A choice of two optional tap kits are available for this tank.

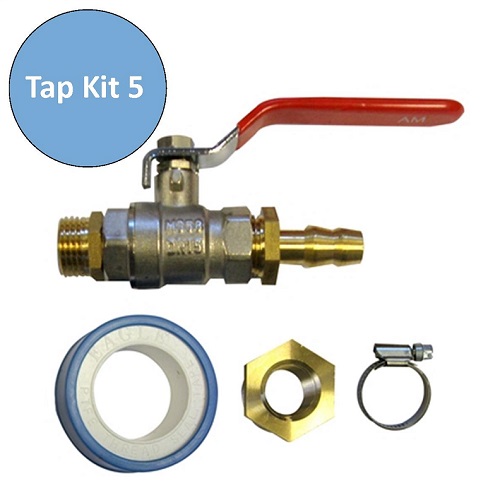

Tap Kit 5 includes:
- ½” Lever tap
- ½” Brass nipple
- ¾” to ½” Brass reducer
- 12mm Brass straight hosetail
- 1 Roll of PTFE tape
- Hose clip

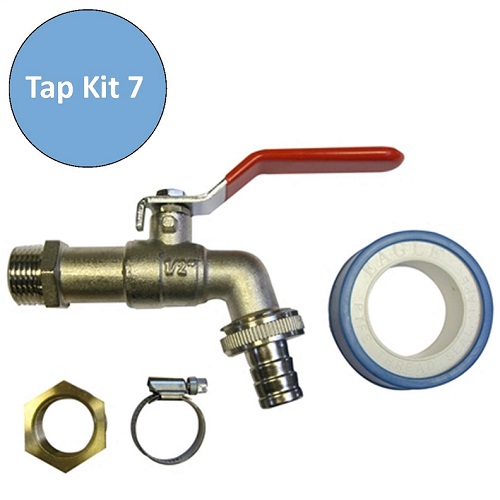

Tap Kit 7 includes:
- ½” Bib tap with 12mm hosetail
- ¾” to ½” Brass reducer
- Hose clip
- 1 Roll of PTFE tape
Please Note: Black tanks are manufactured to order and this will add to the delivery time.
