200 Litre Round Water Tank
Tank Specifications
| Diameter - mm | 555 |
| Height - mm | 954 |
| Approx. Weight (empty) - kg | 15 |
| Capacity - Litres | 205 |
| Capacity - Gallons | 46 |
| Outlet Size | 3/4" BSP Female |
| Lid Diameter - Inches | 8 |
| Construction Material | Food Grade Polyethylene |
Product Downloads
Tank Specifications
| Diameter - mm | 555 |
| Height - mm | 954 |
| Approx. Weight (empty) - kg | 15 |
| Capacity - Litres | 205 |
| Capacity - Gallons | 46 |
| Outlet Size | 3/4" BSP Female |
| Lid Diameter - Inches | 8 |
| Construction Material | Food Grade Polyethylene |
Our 200 Litre water tank is manufactured from a tough and durable polyethylene which is UV protected and weather resistant.
Fusion Welded Sockets
If you require the tank outlet in a different position to the standard location, a fusion welded socket can be added and this allows flexible positioning of inlets and outlets on the tank. Multiple extra sockets can be added to the roof and base areas - prices of the sockets can be found in the downloadable technical data sheet titled ‘Fusion Welded Sockets - 200 Litre Round Water Tank’.
The sockets are available in the following sizes:
- ½ inch BSP Female
- ¾ inch BSP Female
- 1 inch BSP Female
- 1 ¼ inch BSP Female
- 1 ½ inch BSP Female
- 2 inch BSP Female
- ¾ inch BSP Male
- 1 inch BSP Male
- 1 ½ inch BSP Male
All you need to do is download the technical data sheet and mark the position you require the inlet/outlet(s), email this to us at sales@kingfisherdirect.co.uk and then give us a call on 01777 858009 to place your order.
Optional Tap Kits
A choice of two optional tap kits are available to suit this tank.

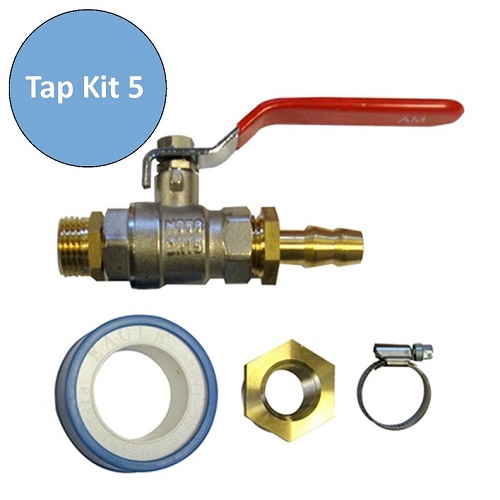

Tap Kit 5 includes;
- ½" Lever Tap
- ½" Brass nipple
- ¾" to ½" reducer
- 12mm brass straight hosetail
- 1 Roll of PTFE tape
- Hose clip

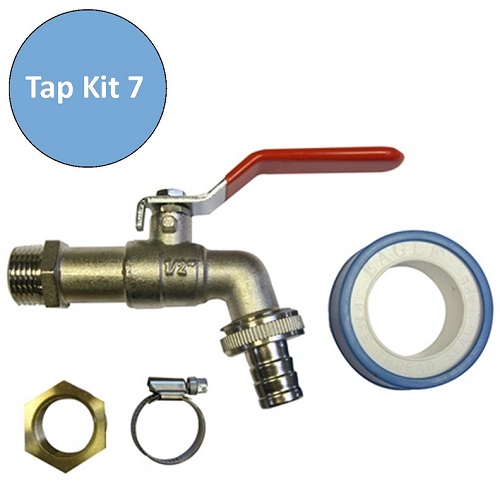

Tap Kit 7 includes;
- ½" Bib tap c/w 12mm hosetail
- ¾" to ½" brass reducer
- Hose clip
- PTFE tape
If you require one of the optional tap kits, please select the kit you require from the drop down box.
