28 Litre Tower Water Tank
Tank Specifications
Length - mm | 270 |
Width - mm | 200 |
Height - mm | 580 |
Approx. Weight (empty) - kg | 3 |
Capacity - Litres | 28 |
Capacity - Gallons | 6.15 |
Suitable for Drinking Water | Yes |
Outlet Size | ½" BSP Female |
Lid Diameter - Inches | 4 |
Height With Turret/Lid - mm | 625 |
Construction Material | Polyethylene |
Product Downloads
Tank Specifications
Length - mm | 270 |
Width - mm | 200 |
Height - mm | 580 |
Approx. Weight (empty) - kg | 3 |
Capacity - Litres | 28 |
Capacity - Gallons | 6.15 |
Suitable for Drinking Water | Yes |
Outlet Size | ½" BSP Female |
Lid Diameter - Inches | 4 |
Height With Turret/Lid - mm | 625 |
Construction Material | Polyethylene |
This 28-litre tank is manufactured from tough and durable polyethylene and is suitable for the storage and transportation of a wide range of liquids including drinking water. The tank is semi-translucent which is ideal for seeing the water level inside the tank and is suitable for storing liquids up to 70°c.
The tank is supplied with a 4" vented lid and 1/2" Female BSP outlet as standard.
Fusion Welded Sockets
If you require the tank outlet in a different position to the standard location, a fusion welded socket can be added and this allows flexible positioning of inlets and outlets on the tank. Multiple extra sockets can be added - prices of the sockets can be found in the downloadable technical data sheet titled ‘Fusion Welded Sockets - 28 Litre Tower Water Tank’.
The sockets are available in the following sizes:
- ½ inch BSP Female
- ¾ inch BSP Female
- 1 inch BSP Female
- 1 ¼ inch BSP Female
- 1 ½ inch BSP Female
- 2 inch BSP Female
- ¾ inch BSP Male
- 1 inch BSP Male
- 1 ½ inch BSP Male
All you need to do is download the technical data sheet and mark the position you require the inlet/outlet(s), email this to us at sales@kingfisherdirect.co.uk and then give us a call on 01777 858009 to place your order.
Optional Tap Kit
An optional tap kit is available for use with this tank.

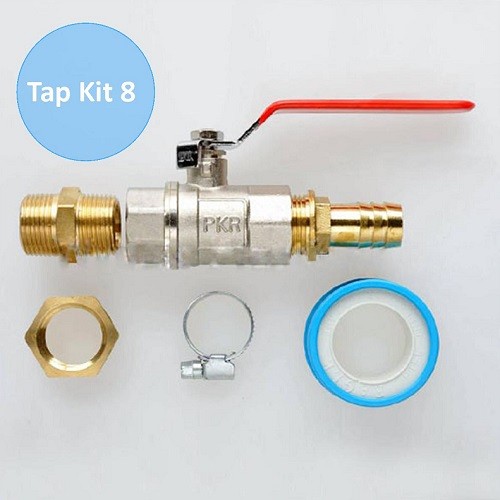

Tap Kit 8 includes:
- 1/2 Inch Lever Tap
- 1/2 Inch Brass Nipple
- 12mm Brass Straight Hosetail
- 1x Roll of PTFE Tape
- Hose Clipe
If you require the optional tap kit, please tick the checkbox located at the top of this listing.
Please Note: Black tanks are manufactured to order and this will add to the delivery time.
