36 Litre Water Tank
Tank Specifications
| Length - mm | 430 |
| Width - mm | 290 |
| Height - mm | 310 |
| Approx. Weight (empty) - kg | 3.2 |
| Capacity - Litres | 36 |
| Capacity - Gallons | 8 |
| Suitable for Drinking Water | Yes |
| Outlet Size | ¾” BSP Female |
| Lid Diameter - Inches | 6 |
| Height With Turret/Lid - mm | 360 |
| Construction Material | Food Grade Polyethylene |
Product Downloads
Tank Specifications
| Length - mm | 430 |
| Width - mm | 290 |
| Height - mm | 310 |
| Approx. Weight (empty) - kg | 3.2 |
| Capacity - Litres | 36 |
| Capacity - Gallons | 8 |
| Suitable for Drinking Water | Yes |
| Outlet Size | ¾” BSP Female |
| Lid Diameter - Inches | 6 |
| Height With Turret/Lid - mm | 360 |
| Construction Material | Food Grade Polyethylene |
This water tank is manufactured from tough and durable polyethylene and is suitable for the storage and transportation of a wide range of liquids including drinking water.
Features
- 36 Litre capacity
- ¾” BSP female outlet (outlet can be undrilled if required)
- 6” vented lid
- Manufactured from food grade polyethylene
- UV protected and weather resistant
- Semi-translucent to allow the fill level to be seen
- Suitable for storing liquids up to 70°c
- Not baffled
Fusion Welded Sockets
If you require the tank outlet in a different position to the standard location, a fusion welded socket can be added and this allows flexible positioning of inlets and outlets on the tank. Multiple extra sockets can be added - prices of the sockets can be found in the downloadable technical data sheet titled ‘Fusion Welded Sockets - 36 Litre Tank’.
The sockets are available in the following sizes:
- ½ inch BSP Female
- ¾ inch BSP Female
- 1 inch BSP Female
- 1 ¼ inch BSP Female
- 1 ½ inch BSP Female
- 2 inch BSP Female
- ¾ inch BSP Male
- 1 inch BSP Male
- 1 ½ inch BSP Male
All you need to do is download the technical data sheet and mark the position you require the inlet/outlet(s), email this to us at sales@kingfisherdirect.co.uk and then give us a call on 01777 858009 to place your order.
Optional Tap Kits
A choice of two optional tap kits are available to suit this tank.

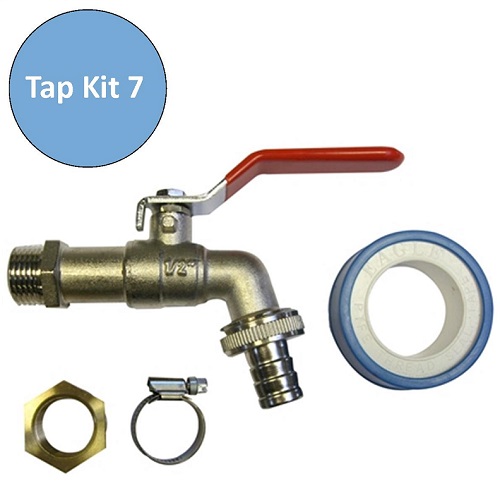

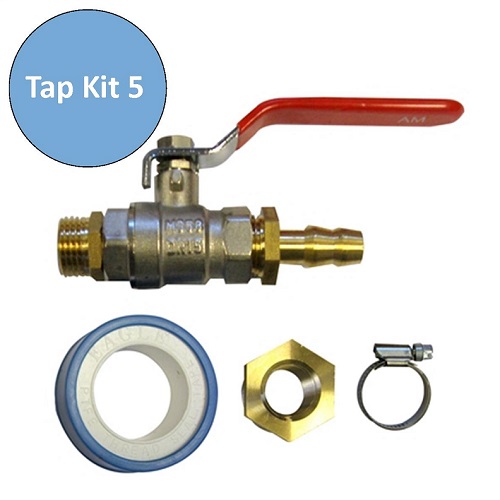

| Tap Kit 5 | Tap Kit 7 |
| ½” Lever tap ½” Brass nipple ¾” to ½” Brass reducer 12mm Brass straight hosetail 1 Roll of PTFE tape Hose clip |
½” Bib tap with 12mm hosetail ¾” to ½” Brass reducer Hose clip 1 Roll of PTFE tape |
If you require one of the optional tap kits, please select the kit you require from the drop down box.
Please Note: Black tanks are manufactured to order and this will add to the delivery time.
