4 Litre Water Tank
Tank Specifications
Length - mm | 320 |
Width - mm | 150 |
Height - mm | 100 |
Approx. Weight (empty) - kg | 0.7 |
Capacity - Litres | 4 |
Capacity - Gallons | 1 |
Suitable for Drinking Water | Yes |
Outlet Size | ½ inch BSP Female |
Lid Diameter - Inches | 2 1/4 |
Height With Turret/Lid - mm | 135 |
Construction Material | Food Grade Polyethylene |
Product Downloads
Tank Specifications
Length - mm | 320 |
Width - mm | 150 |
Height - mm | 100 |
Approx. Weight (empty) - kg | 0.7 |
Capacity - Litres | 4 |
Capacity - Gallons | 1 |
Suitable for Drinking Water | Yes |
Outlet Size | ½ inch BSP Female |
Lid Diameter - Inches | 2 1/4 |
Height With Turret/Lid - mm | 135 |
Construction Material | Food Grade Polyethylene |
This water tank is manufactured from tough and durable polyethylene and is suitable for the storage and transportation of a wide range of liquids including drinking water.
Features:
- 4 litre capacity
- ½” BSP female outlet (outlet can be undrilled if required)
- 2 ¼” lid with seal
- Manufactured from food grade polyethylene
- UV protected and weather resistant
- Semi-translucent to allow the fill level to be seen
- Suitable for storing liquids up to 70°c
- Not baffled
Fusion Welded Sockets
If you require the tank outlet in a different position to the standard location, a fusion welded socket can be added and this allows flexible positioning of inlets and outlets on the tank. Multiple extra sockets can be added - prices of the sockets can be found in the downloadable technical data sheet titled ‘Fusion Welded Sockets - 4 Litre Tank’.
The sockets are available in the following sizes:
- ½ inch BSP Female
- ¾ inch BSP Female
- 1 inch BSP Female
- 1 ¼ inch BSP Female
- 1 ½ inch BSP Female
- 2 inch BSP Female
- ¾ inch BSP Male
- 1 inch BSP Male
- 1 ½ inch BSP Male
All you need to do is download the technical data sheet and mark the position you require the inlet/outlet(s), email this to us at sales@kingfisherdirect.co.uk and then give us a call on 01777 858009 to place your order.

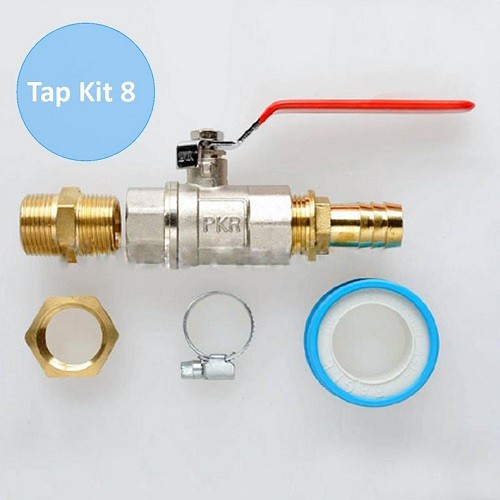

Optional Tap Kit
An optional tap kit is available to suit this tank. The tap kit consists of:
- ½” lever tap
- ½” brass nipple
- 12mm brass hose tail
- Hose clip
- 1x roll of PTFE tape
If you require the optional tap kit, please tick the checkbox located at the top of this listing.
Please Note: Black tanks are manufactured to order and this will add to the delivery time.
