60 Litre Flat Water Tank
Tank Specifications
| Length - mm | 800 |
| Width - mm | 350 |
| Height - mm | 250 |
| Weight - kg | 5.5 |
| Capacity - Litres | 60 |
| Suitable for Drinking Water | Yes |
| Outlet Size | ¾” BSP Female |
| Lid Diameter - Inches | 5 |
| Construction Material | Food Grade Polyethylene |
Product Downloads
Tank Specifications
| Length - mm | 800 |
| Width - mm | 350 |
| Height - mm | 250 |
| Weight - kg | 5.5 |
| Capacity - Litres | 60 |
| Suitable for Drinking Water | Yes |
| Outlet Size | ¾” BSP Female |
| Lid Diameter - Inches | 5 |
| Construction Material | Food Grade Polyethylene |
This 60 litre tank is manufactured from tough and durable polyethylene and is suitable for the storage and transportation of a wide range of liquids including drinking water. The tank is semi-translucent which is ideal for seeing the water level inside the tank and is suitable for storing liquids up to 70°c.
The tank is supplied with a 5" non-vented screw cap and 3/4" Female BSP outlet as standard.
Fusion Welded Sockets
If you require the tank outlet in a different position to the standard location, a fusion welded socket can be added and this allows flexible positioning of inlets and outlets on the tank. Multiple extra sockets can be added - prices of the sockets can be found in the downloadable technical data sheet titled ‘Fusion Welded Sockets - 60 Litre Flat Water Tank’.
The sockets are available in the following sizes:
- ½ inch BSP Female
- ¾ inch BSP Female
- 1 inch BSP Female
- 1 ¼ inch BSP Female
- 1 ½ inch BSP Female
- 2 inch BSP Female
- ¾ inch BSP Male
- 1 inch BSP Male
- 1 ½ inch BSP Male
All you need to do is download the technical data sheet and mark the position you require the inlet/outlet(s), email this to us at sales@kingfisherdirect.co.uk and then give us a call on 01777 858009 to place your order.
Optional Tap Kits
A choice of two optional tap kits are available for use with this tank.

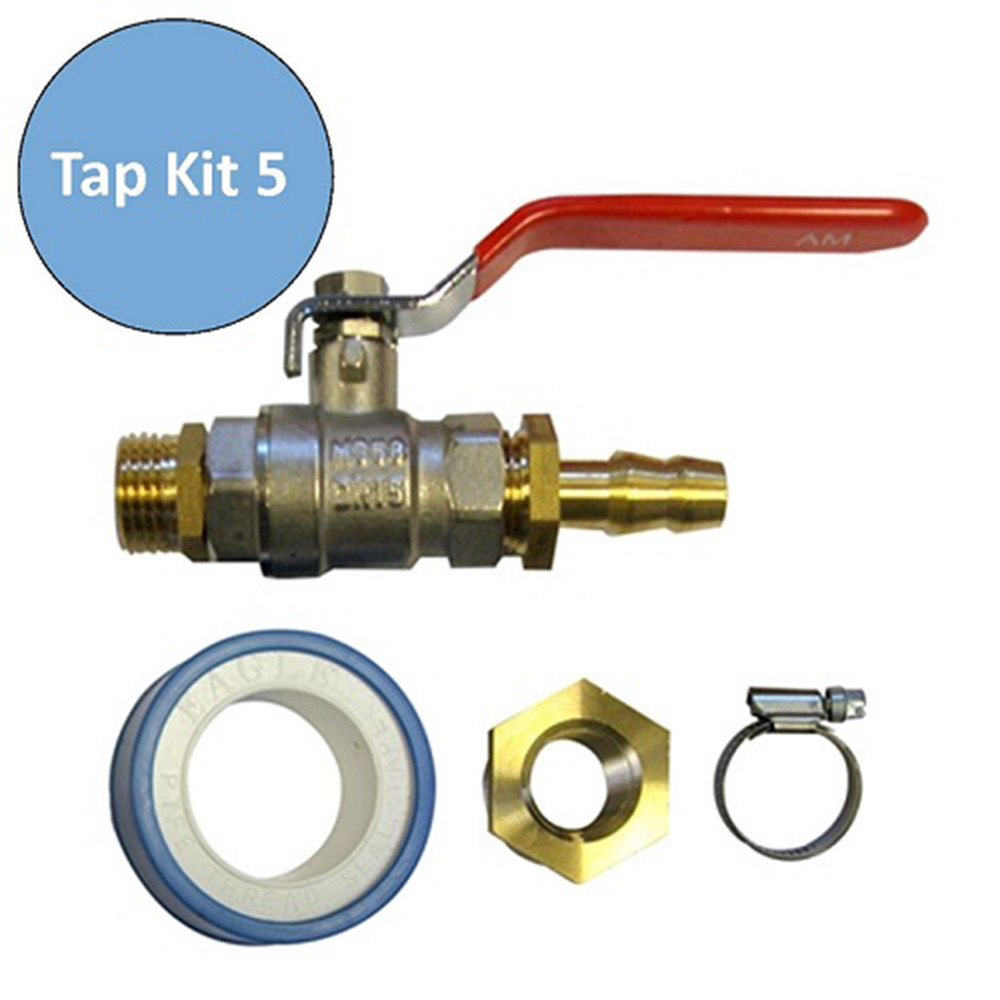

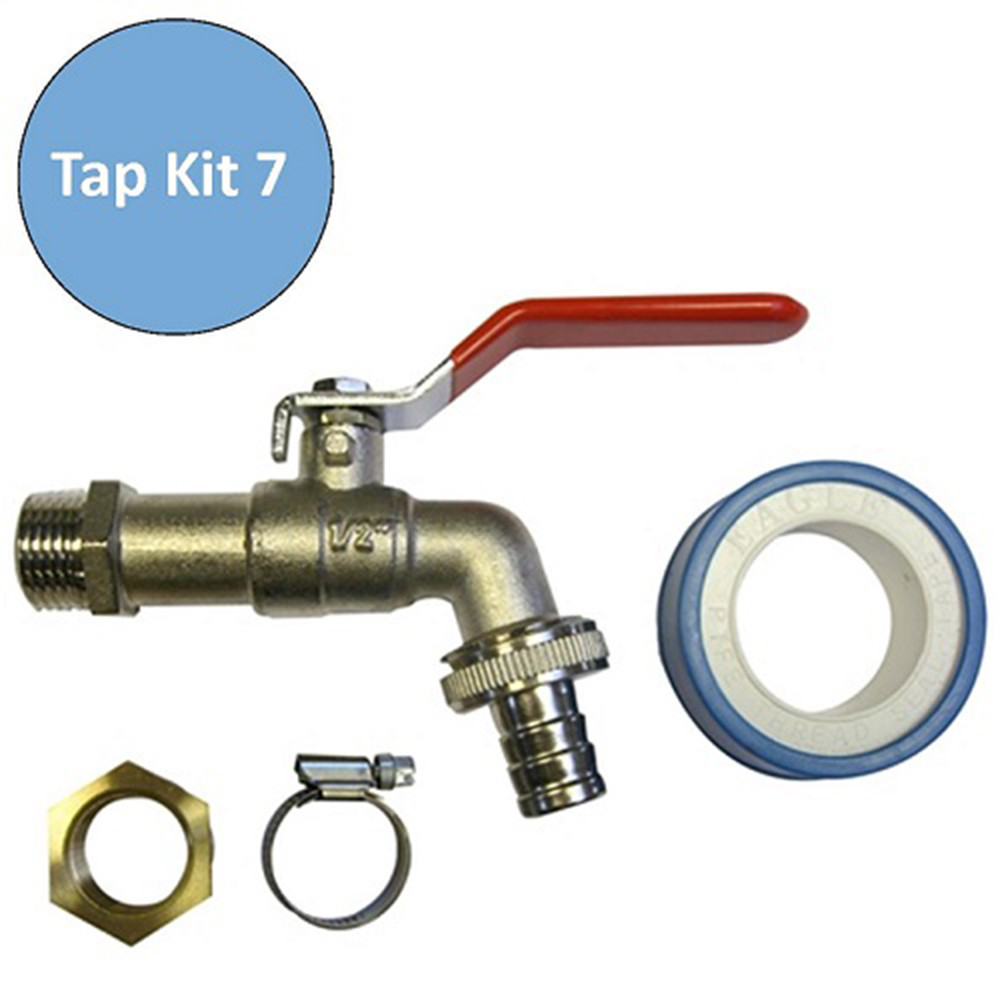

| Tap Kit 5 includes | Tap Kit 7 includes |
|---|---|
| 1/2 Inch Lever Tap | 1/2 Inch Bib Tap with 12mm Hosetail |
| 1/2 Inch Brass Nipple | 3/4 Inch to 1/2 Inch Brass Reducer |
| 3/4 Inch to 1/2 Inch Brass Reducer | 1x Roll of PTFE Tape |
| 12mm Brass Straight Hosetail | Hose Clip |
| 1x Roll of PTFE Tape | |
| Hose Clip |
If you require one of the optional tap kits, please select the kit you require from the drop down box.
Please Note: Black tanks are manufactured to order and this will add to the delivery time.
