Conviviale Mesh Railing

SKU
SPL206293

Available Options (Prices ex. VAT)

£208.10 £173.42

Delivery

Lead Time
5-6 weeks
Delivery Cost
Free UK Mainland Delivery
Exclusions apply - Click here for more details

UK Delivery Charges - Important Information

Our standard UK Mainland delivery charges have been automatically added to your shopping basket. As our products are supplied from a number of different locations, delivery times can vary, please read the product descriptions for more details. If we are unable to deliver your order within the timeframe specified in the product description, we will contact you, as soon as possible to advise of a revised delivery date.

Need your order urgently? We may be able to assist and offer an express delivery service, call our sales team on 01777 858009

Buying in bulk? Call our sales team on 01777 858009

Delivery to any of the following areas may incur additional delivery charges

Channel Islands, Isle of Man, Isle Of Wight, Anglesey, Isles of Scilly, Western Isles, Orkney Islands, Shetland Islands, Northern Ireland & Republic of Ireland, Scottish Highlands and Offshore Islands and also areas north of the Glasgow/Edinburgh line including the following postcode areas:

AB, DD, DG, EH, FK, G, HS, IV, KA, KW, KY, ML, PA20-40, PA60-78, PH1-26, PH30-44, PH49-50, TD, ZE

If your delivery location or postcode is listed above, please call our sales team on 01777 858009 for more details.

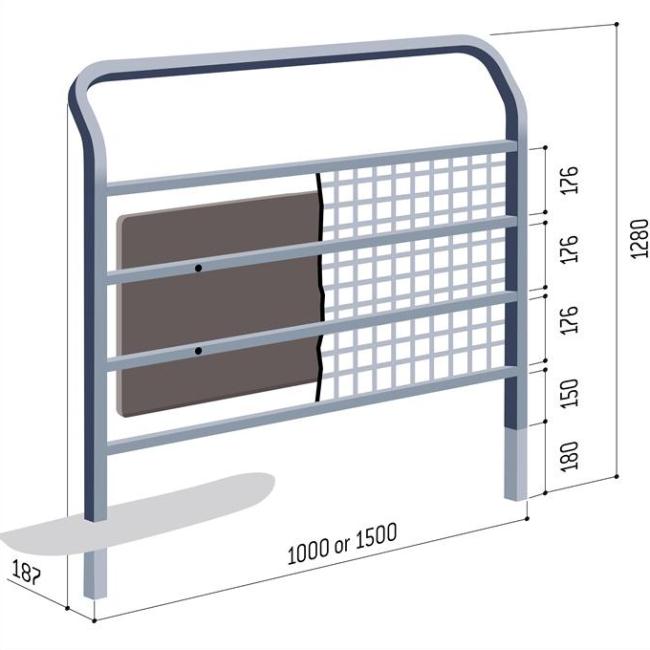

Specification

Construction Material
Mild Steel
Height - mm
1280
Horizontal Post Thickness - mm
30 x 30
Length - mm
1500
Upright Post Thickness - mm
40 x 40

Details

The Conviviale Mesh Railing has been designed for the purpose of allowing pedestrians to lean on it while the mesh panel is designed to block objects thrown up from the road.

Specification

  • Manufactured from galvanised steel
  • 40 x 40mm steel outer posts
  • 30 x 30mm steel horizontal cross bars
  • 5mm diameter mesh
  • Zinc primed and coated in one of our standard RAL colours
  • 1500mm length
  • 1280mm height
  • Designed to be concreted directly into the ground

Installation

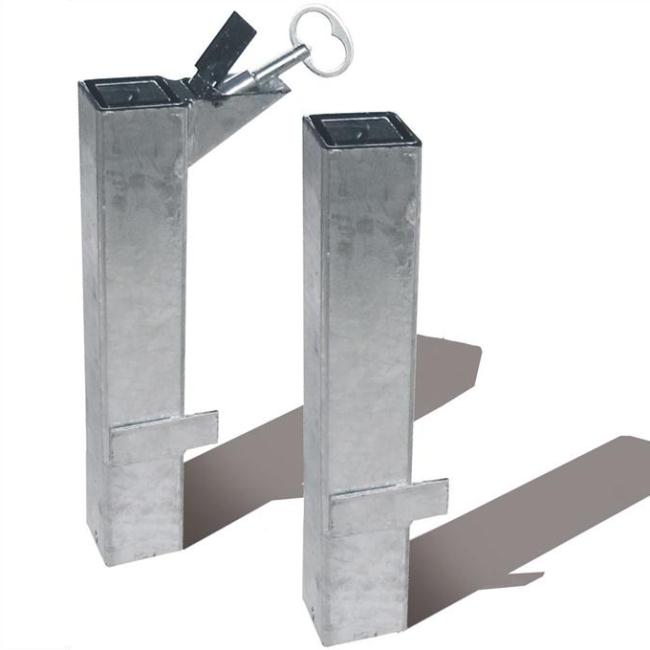

The Conviviale Mesh Railing is designed to be concreted directly into the ground for a permanent siting, however the railings can be made removable using our Lockblock socket system.

The Lockblock sockets provide total stability and security and are locked and unlocked using an 11mm triangle key. A static galvanised central boss sits flush with the ground to ensure there is no trip hazard when the railing is removed.

Advantages of using Lockblock sockets are:

  • The railing remains perfectly stable as if it is concreted in
  • The sockets are 100% galvanised for complete corrosion protection
  • Rainwater drains naturally through sub-surface gravel
  • A reservoir allows for the collection of sand and gravel
  • The lock is protected by a black lacquered flap
  • 180mm of the railing sits inside the socket to ensure a constant height

All Lockblock Sockets are supplied in pairs.
