Specification
- Capacity - Kg
- 1000
- Height of Body - mm
- 1800
- Width of Body - mm
- 915
Details
- none

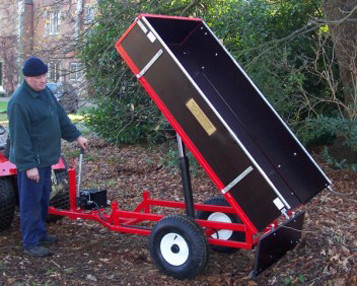

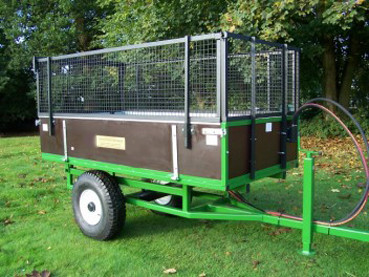

The hydraulic tipping trailer has been designed for use behind compact trailers.
The head board is fixed, the two sides and the tailgate drop down.
A clevis hitch is supplied as standard.
A ball hitch or ring can be fitted at an extra cost.
Carrying Capacity - 1000 kg (1 ton).
Width of Body - 915mm (36")
Length of Body - 1800mm (72")
Hinged Sides - 300mm (12")
Wheel Size - 600 x 9 ball bearings with hubs
Weight - 187 kg
Tipping Trailer Variations
The tipping mechanism on the tipping trailers are supplied in three different mechanical forms.
1. Powered from the tractor's hydraulic system - Single pipe system supplied according to tractor's spool (HTRL1).
2. Powered from the tractor's hydraulic system - Double pipe system supplied according to tractor's spool (HTRL2).
3. 12 volt hydraulic power pack (HTRLE).
4. Manual action hydraulic pump (HTRLM).
