JS Pump JS-750 SV Submersible Sewage/Waste Water Pump - 500 L/min

SKU
WRJS750SV

Available Options (Prices ex. VAT)

From £591.80 £493.17

Delivery

Lead Time
3-5 working days
Delivery Cost
£12.50 + VAT
Exclusions apply - Click here for more details

UK Delivery Charges - Important Information

Our standard UK Mainland delivery charges have been automatically added to your shopping basket. As our products are supplied from a number of different locations, delivery times can vary, please read the product descriptions for more details. If we are unable to deliver your order within the timeframe specified in the product description, we will contact you, as soon as possible to advise of a revised delivery date.

Need your order urgently? We may be able to assist and offer an express delivery service, call our sales team on 01777 858009

Buying in bulk? Call our sales team on 01777 858009

Delivery to any of the following areas may incur additional delivery charges

Channel Islands, Isle of Man, Isle Of Wight, Anglesey, Isles of Scilly, Western Isles, Orkney Islands, Shetland Islands, Northern Ireland & Republic of Ireland, Scottish Highlands and Offshore Islands and also areas north of the Glasgow/Edinburgh line including the following postcode areas:

AB, DD, DG, EH, FK, G, HS, IV, KA, KW, KY, ML, PA20-40, PA60-78, PH1-26, PH30-44, PH49-50, TD, ZE

If your delivery location or postcode is listed above, please call our sales team on 01777 858009 for more details.

Specification

Weight - kg
32
Length - mm
345
Width - mm
165
Height - mm
530
WRAS Approved
No
Float Switch
No

Details

The SV Series by JS Pump is a range of submersible sewage pumps which allow soft solids to pass through the pump body before going to waste.

  • Cast iron pump body, volute stand, impeller, lower motor bearing/seal housing and motor top cover
  • Stainless steel shaft and motor casing
  • Twin mechanical seals – Carbon ceramic and silicon carbide
  • Supplied with 10 metres of power cable
  • Single channel cutter impeller
  • Available in 230v manual or automatic & 110v manual or automatic
  • 500 L/Min maximum flow
  • 9 Metres maximum head
  • 3” BSP Female outlet with hose tail connection
Model KG H x W x L (mm) L/Min Max. Head kW
JS-750 SV Manual 230v 32 530 x 165 x 345 500 9m 0.75
JS-750 SV Automatic 230v 32 530 x 165 x 345 500 9m 0.75
JS-750 SV Manual 110v 32 530 x 165 x 345 500 9m 0.75
JS-750 SV Automatic 110v 32 530 x 165 x 345 500 9m 0.75

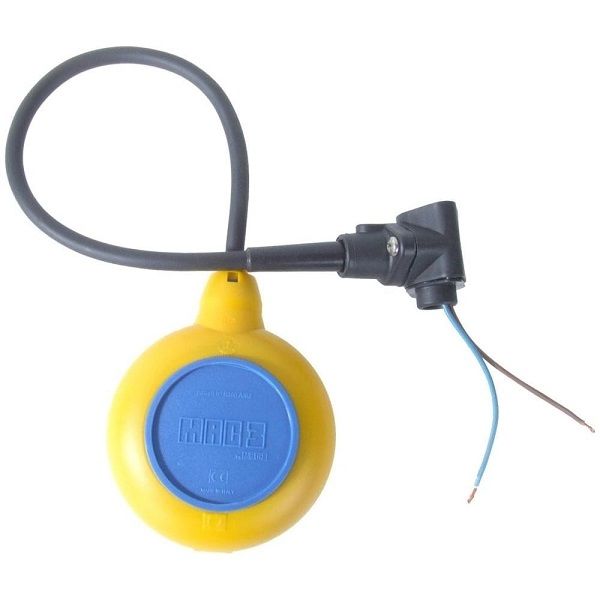

The automatic versions of this pump are supplied with a MAC3 float switch. The float switch is manufactured from strong and durable materials and is fitted to the pump prior to shipping. Allow approximately 300mm space away from the pump for the float switch to operate.
