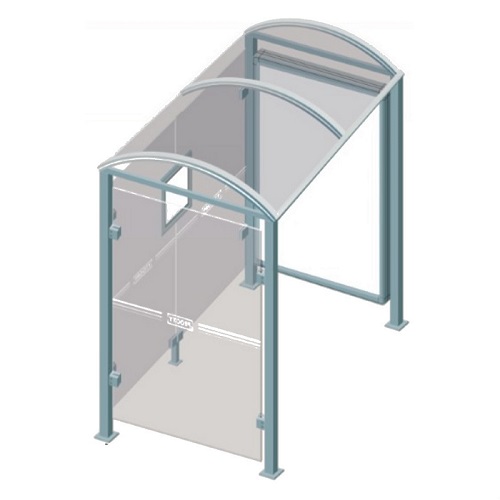

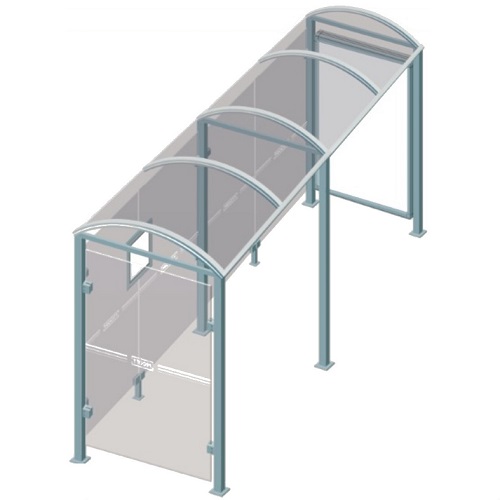

The Lerins is a high quality square post bus shelter that features a modern, attractive design suitable for any outdoor location. The shelter is available in a choice of two lengths – standard 2500mm or a long 5000mm version.
Frame:
- 80 x 80mm steel tube used for the square posts
- Welded base plates allow ground fixing using bolts
- Aluminium profile arcs with two 40 x 60mm aluminium crossbeams
- Aluminium profile rainwater gutters
- Hot dipped galvanised and painted in one of our standard RAL colours
Canopy:
- 6mm translucent anti-UV cellular polycarbonate glazing
- The canopy is inserted in the two gutters and between the arcs
Cladding:
- Fitted with back cladding and one side cladding
- Shatter resistant 8mm safety glass with EC safety standard etching on the glass
- Cladding is fixed by a Zamac clamping device
- This system allows easy replacement of safety glass panels in the event of vandalism
Timetable Notice Board:
- 30mm profile aluminium
- Silver anodised
- H 750 x W 550mm
- Doors fitted with tamper proof lock with wear resistant and warp proof integrated hinges
- Galvanised backboard painted white and
- Shock and UV resistant plexichoc glazing
- Fixings supplied
Double Sided Poster Case:
- Integrated in to the shelter and fixed to the post by mounting brackets
- 75mm thick aluminium frame
- Raising door made of 4mm security glass on gas struts
- Display size H 1750 x W 1200mm
Assembly & Installation:
- Each shelter is supplied with assembly and installation instructions
- Professional installation can be arranged at extra cost – please call us for a quotation
Optional Extras:
- Wind/rain protection consisting of PMMA transparent sheet with 3x fixing brackets.
- LED lighting – Provide night time safety and comfort by internally lighting the bus shelter (electricity supply needed from local grid 220V)
Specification
- Construction Material
- Steel and Aluminium
- Depth - mm
- 1560
- Height - mm
- 2547
- Length - mm
- 2500 or 5000
- Colour
