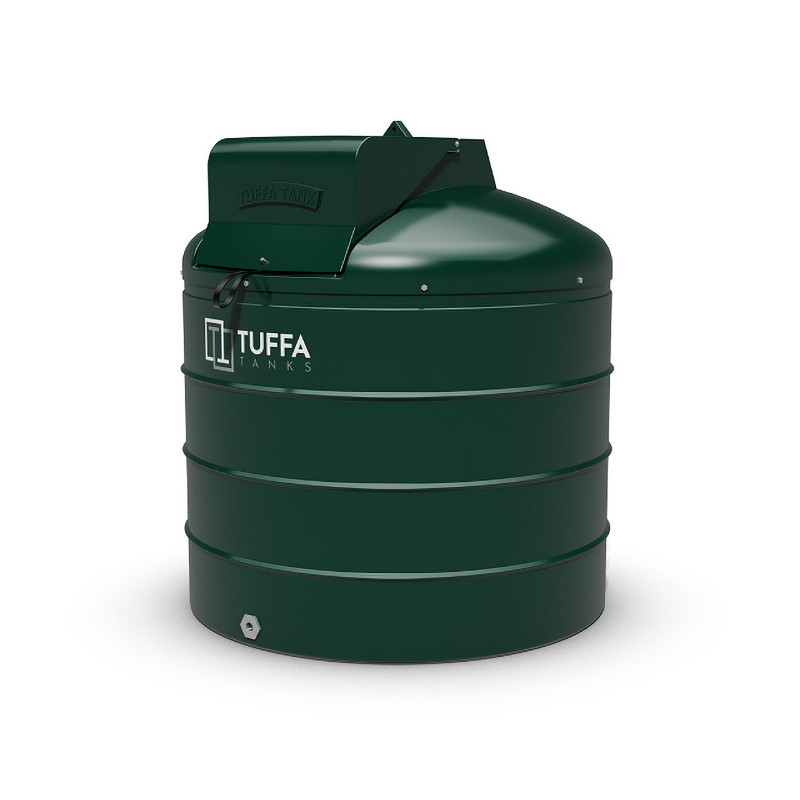

Tuffa 1200 Litre Fire Protected Bunded Oil Tank


Available Options (Prices ex. VAT)

From £2,613.12 £2,177.60


Lead Time
5-6 weeks
Delivery From
£160.00 + VAT
Exclusions apply - Click here for more details

UK Delivery Charges - Important Information

Our standard UK Mainland delivery charges have been automatically added to your shopping basket. As our products are supplied from a number of different locations, delivery times can vary, please read the product descriptions for more details. If we are unable to deliver your order within the timeframe specified in the product description, we will contact you, as soon as possible to advise of a revised delivery date.

Need your order urgently? We may be able to assist and offer an express delivery service, call our sales team on 01777 858009

Buying in bulk? Call our sales team on 01777 858009

Delivery to any of the following areas may incur additional delivery charges

Channel Islands, Isle of Man, Isle Of Wight, Anglesey, Isles of Scilly, Western Isles, Orkney Islands, Shetland Islands, Northern Ireland & Republic of Ireland, Scottish Highlands and Offshore Islands and also areas north of the Glasgow/Edinburgh line including the following postcode areas:

AB, DD, DG, EH, FK, G, HS, IV, KA, KW, KY, ML, PA20-40, PA60-78, PH1-26, PH30-44, PH49-50, TD, ZE

If your delivery location or postcode is listed above, please call our sales team on 01777 858009 for more details.


Weight - kg
Diameter - mm
Height - mm
Capacity - Litres
Suitable for Drinking Water (Potable)
WRAS Approved


Our bespoke 1200 litre Tuffa oil storage tank is a fully bunded fire protected tank ideal for both domestic and commercial installations. Sanctioned by the Local Authority Building Control (LABC), it has an integrally fitted “fire barrier” constructed from a high-quality fire retardant material enabling the tank to be installed in closer proximity to buildings and boundaries than conventional unprotected oil tanks.

The bunded design offers enhanced protection for the oil and surrounding environment with the inner tank holding the oil while the outer bund carries a minimum 110% of the total amount of liquid being stored. In the unlikely event of the inner tank splitting, the outer bund retains the contents and safeguards the immediate area from potentially-costly pollution.

Manufactured in the UK from tough, recyclable and UV-resistant polyethylene, this tank can be supplied with either a 30 or 60 minute fire resistance through the integration of its unique and patented fire barrier around the inner tank to deliver fire resistance.


  • Integral fire protection
  • LABC approved
  • Available with 30 or 60 minutes fire resistance
  • Brimful capacity of 1200 litres (264 gallons)
  • Bund contains a minimum 110% volume of the inner tank
  • Covered bund prevents the collection of rainwater and debris
  • Moulded from premium grade, UV stabilised and recyclable Polyethylene (MDPE)
  • Corrosion resistant
  • Overfill prevention device
  • Level float gauge & Watchman Sonic gauge

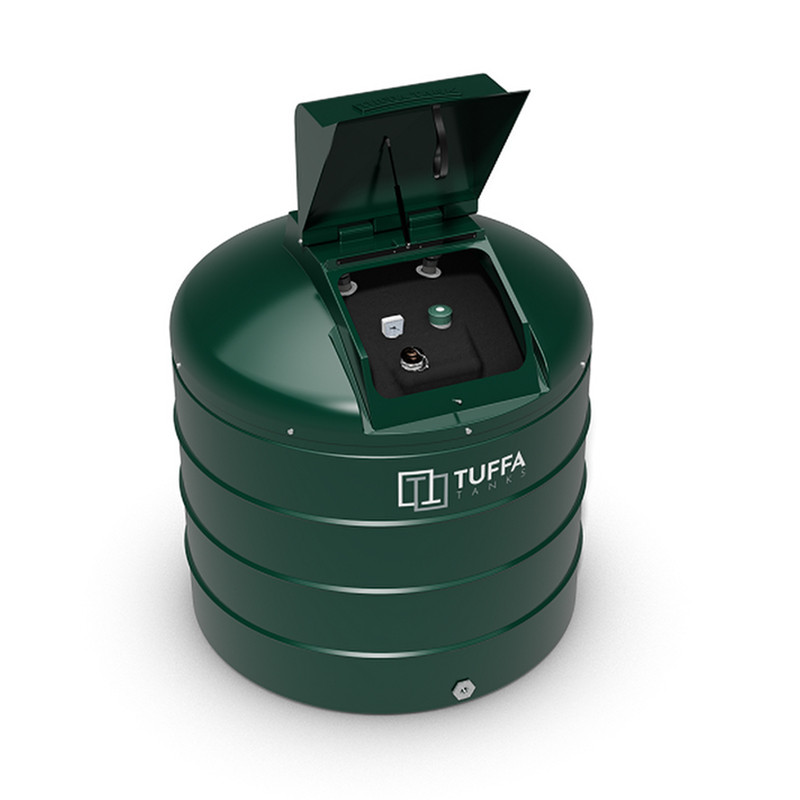

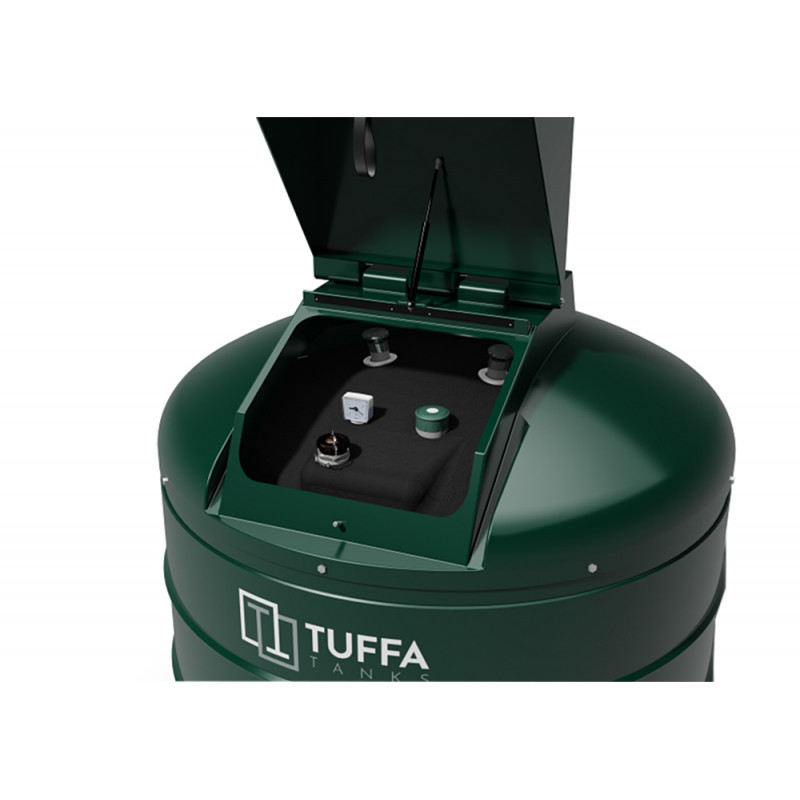

  • Lockable hinged flap lid
  • 10 year warranty
  • Optional 10mm top outlet available

The tank has a brim-full capacity of 1200 litres (264 gallons) which is the maximum volume of liquid it can hold if it were to be filled completely to the top. It is also equipped with an automatic shut-off overfill prevention device and a level float gauge which denotes the fuel level along with a secondary measure of the fuel quantity in the clear inner tank.

Users will also benefit from the Watchman Sonic gauge which remotely monitors the amount of fuel in your oil storage tank and wirelessly transmits the reading to an indoors receiver meaning you don’t have to go out in the cold to establish your fuel level. When the level is below 10 per cent, the fuel dispensing pump symbol appears on the receiver as a reminder to order more oil.

The lockable hinged flap lid affords easy access to the tank and provides an additional security element. This tank comes supplied with a 10 year warranty for your peace of mind.

30 minutes fire resistance is appropriate for domestic installations whilst the optional 60 minute resistance is required for commercial installations - this allows the tank to be located within 1.8m of combustible structures, openings in buildings and eaves, as well as positioned within 760mm of a combustible boundary.

In addition to its LABC approval, the fire barrier has also been recognised through the following achievements:

  • Independently tested to BS476 : Part 22:1987
  • Independently tested to BS476 (Warrington Fire Research Centre)
  • Meets section J 5.4 of building regulations, Table 5.1 for Fire Protection for Oil Storage Tanks
  • CE Marked in accordance with EN13341 and the Construction Products Regulations


  • 2″ BSP Fill Connection with cap and chain
  • 1″ Bottom Outlet (or 10mm top outlet available)
  • Tank Pack (1″ – 1/2″ adaptor, ball valve and filter)
  • Float Level Gauge and Electronic Level Gauge
  • 2x 2" vents,
  • 5" inspection lid
  • Tank Colour: Green


All Tuffa Fire Protected tanks should be installed on an even non-combustible base which extends 300mm beyond the perimeter of the tank (with the exception of any sides which are adjacent fire rated walls - in this case a minimum of 100mm should be provided). The installation should be completed by a competent person and signed off either through building control or a competent persons scheme such as Association of Plumbing and Heating Contractors (APHC).
