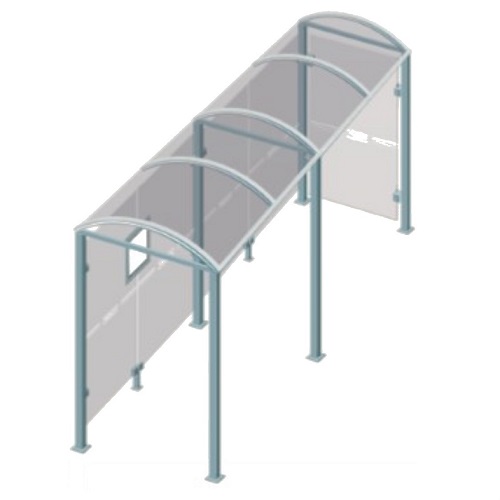

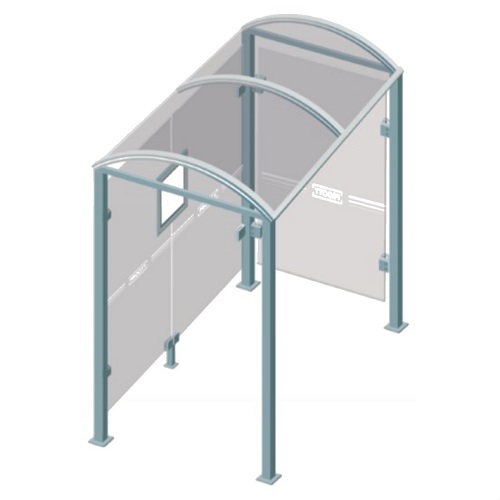

Oleron Square Post Bus Shelter

The Oleron is a high quality square post bus shelter that features a modern, attractive design suitable for any outdoor location. The shelter is available in a choice of two lengths – standard 2500mm or a long 5000mm version.

Frame:

• 80 x 80mm steel tube used for the square posts
• Welded base plates allow ground fixing using bolts
• Aluminium profile arcs with two 40 x 60mm aluminium crossbeams
• Aluminium profile rainwater gutters
• Hot dipped galvanised and painted in one of our standard RAL colours

Canopy:

• 6mm translucent anti-UV cellular polycarbonate glazing
• The canopy is inserted in the two gutters and between the arcs

Cladding:

• Fitted with back cladding and one side cladding
• Shatter resistant 8mm safety glass with EC safety standard etching on the glass
• Cladding is fixed by a Zamac clamping device
• This system allows easy replacement of safety glass panels in the event of vandalism

Timetable Notice Board:

• 30mm profile aluminium
• Silver anodised
• H 750 x W 550mm
• Doors fitted with tamper proof lock with wear resistant and warp proof integrated hinges
• Galvanised backboard painted white and
• Shock and UV resistant plexichoc glazing
• Fixings supplied

Assembly & Installation:

• Each shelter is supplied with assembly and installation instructions
• Professional installation can be arranged at extra cost – please call us for a quotation

Optional Extras:

• Wind/rain protection consisting of PMMA transparent sheet with 3x fixing brackets.
• LED lighting – Provide night time safety and comfort by internally lighting the bus shelter (electricity supply needed from local grid 220V)
