Rainwater Harvesting Kit B

£457.33 £381.11


Lead Time
3-5 working days
Delivery From
Free UK Mainland Delivery
Exclusions apply - Click here for more details

UK Delivery Charges - Important Information

Our standard UK Mainland delivery charges have been automatically added to your shopping basket. As our products are supplied from a number of different locations, delivery times can vary, please read the product descriptions for more details. If we are unable to deliver your order within the timeframe specified in the product description, we will contact you, as soon as possible to advise of a revised delivery date.

Need your order urgently? We may be able to assist and offer an express delivery service, call our sales team on 01777 858009

Buying in bulk? Call our sales team on 01777 858009

Delivery to any of the following areas may incur additional delivery charges

Channel Islands, Isle of Man, Isle Of Wight, Anglesey, Isles of Scilly, Western Isles, Orkney Islands, Shetland Islands, Northern Ireland & Republic of Ireland, Scottish Highlands and Offshore Islands and also areas north of the Glasgow/Edinburgh line including the following postcode areas:

AB, DD, DG, EH, FK, G, HS, IV, KA, KW, KY, ML, PA20-40, PA60-78, PH1-26, PH30-44, PH49-50, TD, ZE

If your delivery location or postcode is listed above, please call our sales team on 01777 858009 for more details.


The kit includes:

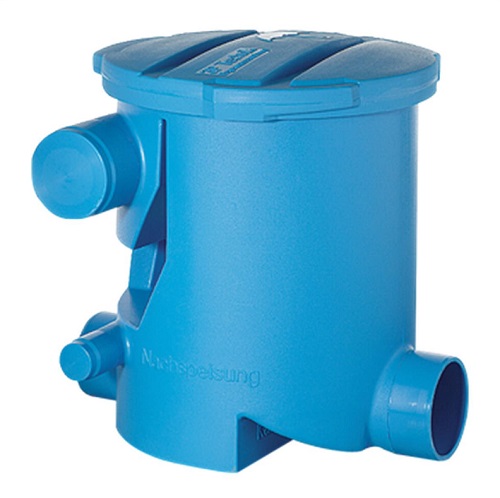

  • VF1 Filter

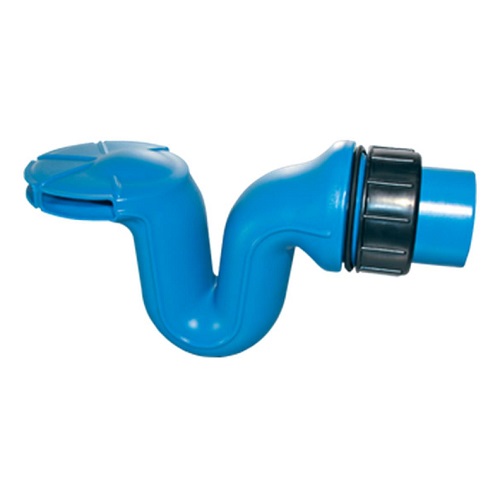

  • Overflow Siphon

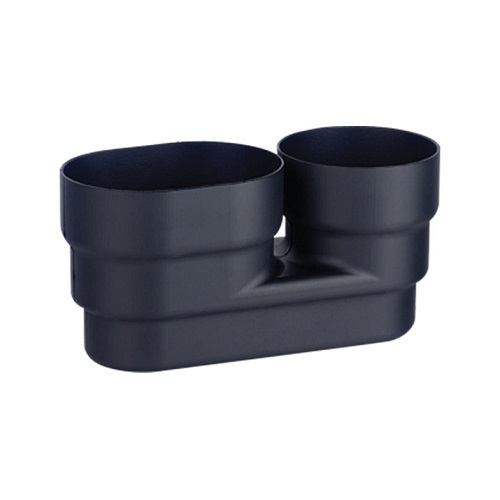

  • Calmed Inlet

The Rainwater Harvesting Kit B will service a roof area of 450m² and is better suited for toilet flushing, general garden use and gives a better quality of filtered water. This kit would be best suited to a tank between 5,500-20,000 litres.

The need to store and re-use, or harvest rainwater is becoming increasingly necessary due to falling supplies and increasing prices of fresh water. For many everyday uses such as dish washing, watering the garden or washing the car, we don't need to use purified drinking water from the tap.

That is where rainwater harvesting makes sense. Rainwater is a free resource and the rainwater that falls on to your roof can be collected, filtered and then stored in a tank ready for use in a number of applications. Although not suitable for drinking, rainwater can be used in homes for flushing the toilet, in washing machines, for watering the garden, car washing etc.

The benefits of rainwater harvesting are that it reduces flooding and overloading of sewers, prolonged appliance lifetimes and beautiful, lush green gardens.

Guidlines for some typical applications

Application Gallons Litres
One person 50 / day 250 / day
Two people 80 / day 360 / day
Three people 145 / day 435 / day
Shower 200 / hr 15 / min
Fill bath 30 / day 140
Flush toilet 1 to 3 5 to 15
Sprinklers 180 / hr 14 / min
1/2" Tap @ 20psi 600 / hr 45 / min
3/4" Tap @ 20psi 1000 / hr 75 / min
Cattle per day 10 to 20 45 to 90 / day
Milking cows 30 to 40 135 to 180 / day
Sheep / Pigs 1 to 2 4 to 9 / day

Choosing your tank volume

It is important that your system meets all the requirements you need from it. The following rule of thumb can be used a as rough calculator. For each person, you need a tank volume of at least 1500 litres. For a tank with a volume of 1000 litres, a roofed surface of 15m² is necessary.

How it works

The rainwater is collected in a 3 way cleaning process. Only rainwater collected from rooftops should be stored in you tank.

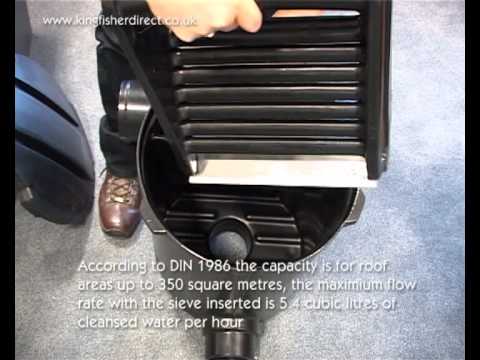

The first cleaning step in the rainwater system is the filter. The rainwater flows through your down pipe and enters the top of the filter. This is where any debris such as leaves, moss or twigs are seperated from the water. The cleaned water continues to flow through the filter and down into the tank below, while the dirt is washed out of the filter and back into the downpipe headed for the sewer. The filters have removable cartridges to make cleaning of the filter much easier. The filter should be cleaned several times a year depending on contamination.

The second cleaning step takes place in the calmed inlet. The calmed inlet ensures that oxygenated water is added to the lower layers of the stored water in the tank. The oxygenated water prevents anaerobic reducing conditions forming in the tank and ensures that the water stays fresh. The calmed inlet also allows water  to enter the tank without disturbing the water that is already there.

The third cleaning step involves the overflow siphon. Any particles that are lighter than water, such as flower pollen, float slowly to the water surface where the overflow siphon will remove this layer.
